No-asbestos composite gasket sheet

No-asbestos composite gasket sheet reinforced with tanged steel for automotive and motorcycle cylinder head gaskets. Hea.....

Send Email

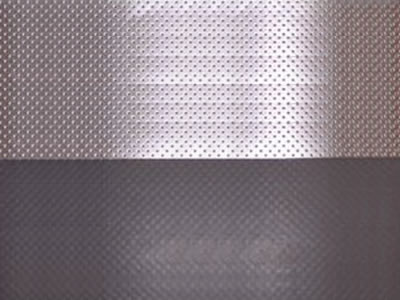

No-asbestos composite gasket sheet is a reinforced sealing material produced by bonding non-asbestos beater sheet (asbestos content approx. 1–3%) to a tanged carbon steel core. Using a 0.18–0.25 mm perforated tinplate or stainless steel insert, this composite structure offers excellent strength, sealing stability, and heat resistance. It is widely applied in automotive and motorcycle cylinder head gaskets, as well as other internal combustion sealing systems requiring durability under heat, pressure, and oils.

Features

The sheet combines a non-asbestos fiber matrix with a mechanically clinched tanged steel core, resulting in a gasket material that handles high compression and fluctuating temperatures. Optional graphite or silicone resin coatings improve sealing reliability and resistance to friction. The product maintains strong compressibility, recovery, and tensile strength, making it suitable for long-term engine sealing where oil, water, and kerosene exposure is expected.

Specifications

Construction

1. Non-asbestos beater sheet + tinplate + non-asbestos beater sheet

2. Non-asbestos beater sheet + SS304/316 + non-asbestos beater sheet
   Coating Options: Graphite coating or silicone resin coating

Available Sizes

• Thickness: 1.0 mm – 3.0 mm

• Standard Sheet Sizes:400 × 1000 mm, 500 × 1000 mm, 500 × 1200 mm, 500 × 1500 mm, 510 × 1016 mm, 1000 × 1000 mm

• Colors: Gray, Black, Red, Green

• Custom dimensions available upon request.

Applications

Designed for sealing components subject to high temperatures, pressure fluctuations, and exposure to oil or fuel.

• Automobile and motorcycle cylinder head gaskets

• Diesel engine sealing systems

• Gearbox and sump gaskets

• Industrial mechanical sealing applications
