PTFE products

PTFE products

PTFE products

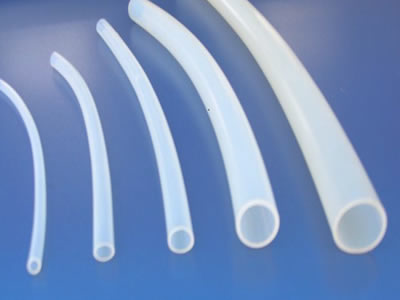

Pure PTFE product includes sheets,rods,tube,tapes and gaskets etc.,they are molded, skived or cut from 100% virgin PTFE...


Pure PTFE product includes sheets,rods,tube,tapes and gaskets etc.,they are molded, skived or cut from 100% virgin PTFE.It has the best chemical corrosion resistance among known plastics,without being aging.lowest friction coefficient,wear resistance.the unloaded operating temperature range is -180 to 260℃.

The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber , carbon fiber and etc.the filled PTFE has improved compression strength, better abrasion resistance,high thermal conductivity and lower thermal expansion compared with pure PTFE products.

Application: Sealing materials ,electrical insulating parts ,lining,oil less lubricating materials etc.

Technical data sheet



Products

Tensile Strength

Pressure

Density

PTFE Molded Sheet

15Mpa

10Mpa

2.1-2.3g/cm³

PTFE Skived Sheet

15Mpa

10Mpa

2.1-2.3g/cm³

Filled PTFE Sheet

10Mpa

16Mpa

2.1-2.3g/cm³

PTFE Tube

25Mpa

10Mpa

2.1-2.3g/cm³

PTFE rod

14Mpa

10Mpa

2.1-2.3g/cm³
